Getting tired of these massive swings in I-RoR

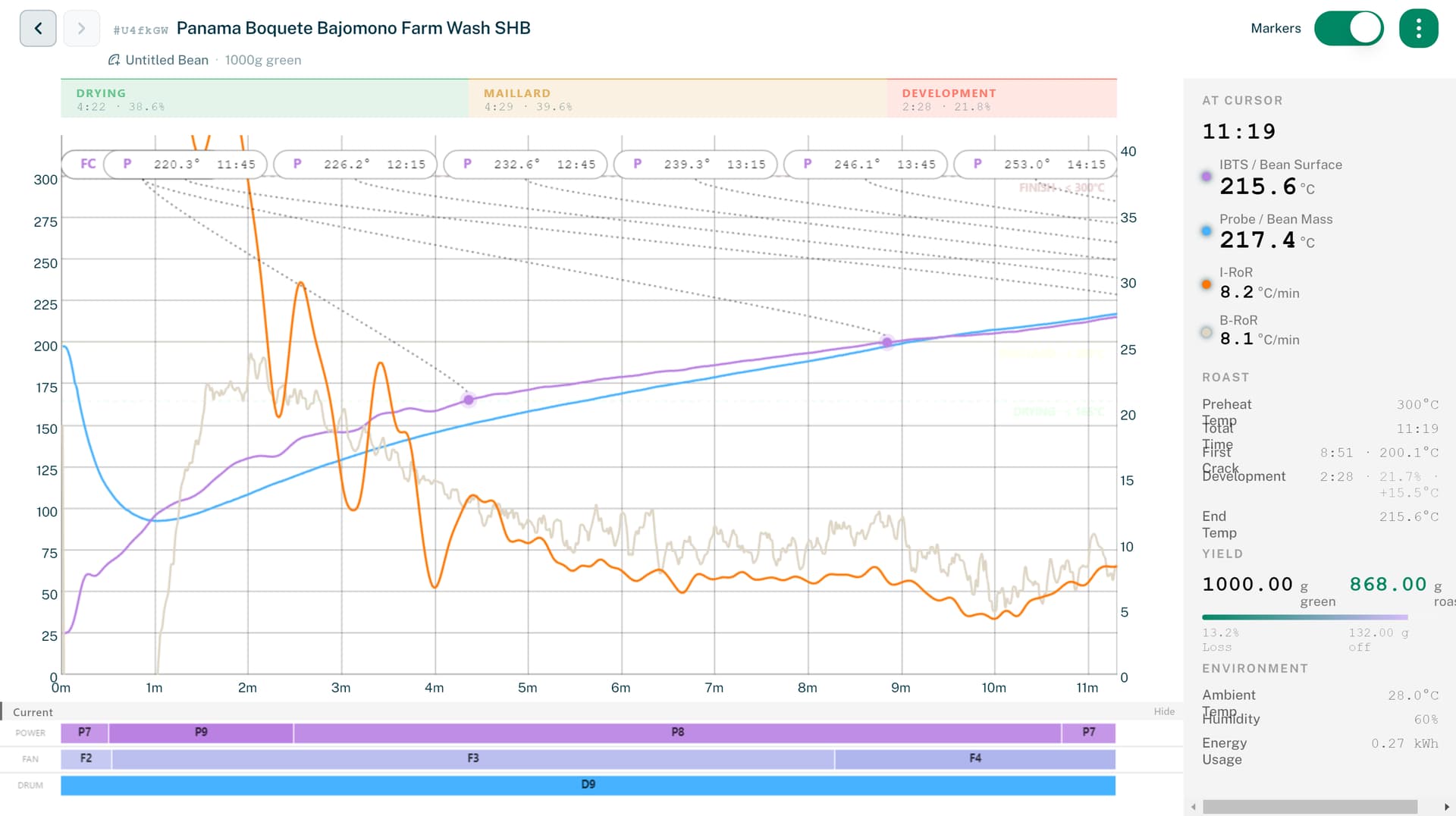

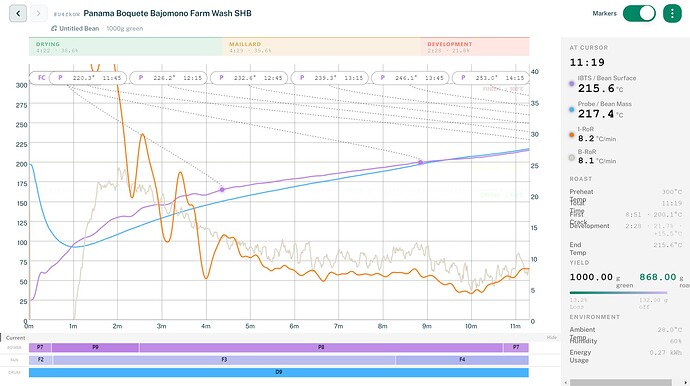

Anyone know why my I-RoR (orange line) sometimes looks like this? I look at other people’s RoasTime curves and rarely see swings this extreme.

It doesn’t happen on every roast, but probably every second or third one. Even when the machine has just been cleaned, and yes the I-RoR sensor as well. It’s wildly unpredictable.

Is this a sensor issue, something with the IBTS readings, or something else entirely? Curious if other Bullet users have experienced this and figured out the cause. I am getting sick of watching my I-RoR sky rocket and crash all over the place…I usually rely on bean sensor when it happens but for a machine this expensive it seems kind of ridiculous to have to deal with.

The main reason for this behaviour is the lack of heat. That’s why your IBTS temp, the purple line, oscillates, which then reflects on the RoR. For 300°C PH, your bean probe should be signaling close to 210°C, not 194°C as it does on this particular roast. On 1kg batches, it also helps to apply as much heat as possible from the get go. On smaller batches, there’s a possibility that the bean probe will signal crashes that aren’t there, with IBTS signaling everything normally. On smaller batches, the Bullet is powerful enough to recover the missing heat from the beginning.

1 Like

I too have difficulty with the ROR graph. I use recipes and have them set up to make the Fan and Power adjustments as gradual and smooth as possible. Consequently, the graphs of the bean temperatures are very smooth, just as I want them. My typically low air volume minimizes dramatic changes to the atmosphere, just as the thermal mass of the drum modulates changes to the power settings. Despite these precautions, I have difficulty determining the trend of a roast based on wild squiggles in the ROR. I fail to see how the simple derivative becomes as wacky as it is. The wildness of that line diminishes its utility.

I’ve experienced the same wildly oscillating RoR curves. For my first roasts of the day the curve is relatively smooth but from about the third roast on the curve oscillates more noticeably with each subsequent roast. I’ve seen this pattern on the charts of other roasters. I’m not sure why this is happening but it does seem to be more than a rare occurrence.

Mine is exactly the same. The first roast is fairly normal and the longer I roast the more erratic the ROR gets. It is very frustrating. I have noticed that some beans have less swings than others regardless of the order I roast them.

This is pretty much my exact experience. First roast is always solid, easily controllable. After that its a crapshoot. You’d think for a machine this expensive they could figure out why that is and how to better solve the problem.
