New R2 - Questions on astringency, under-development

Roasting on the Bullet
8

There are lots of opinions out there, and a lot of anecdotes (including the one I shared) about what works and what doesn’t.

One of the most refreshing perspectives I’ve read on this is from Morten Munchow, who’s done a lot of work on correlating the manipulation of roast inputs to outcomes that people can perceive. His thesis is this: In the end, what you can taste in the cup is really the thing that matters, and only things that drive those outcomes matter in roasting.

Munchow is, like Rao, a consultant who sells his expertise-- that’s important to remember. The rational thing to do is not to take recommendations as prescriptive.

I agree that the most important thing is to experiment, take notes, and learn from your successes and failures. What works for me won’t necessarily appeal to you.

1 Like
9

Great article. That helps.

True, the PH on the smaller batch I now see was too high, so I was over-compensating (using RoR as the guide) and that caused some of the volatility in the RoR as I was lowering power to bring it down.

I’ve never accurately measured temperature at all in my prior roasting experience, and instead went based on smell, color and just intuition.

No, I’ve never measured the color. Just experience and charts. I thought a refractometer only measured the external color, but are you saying there’s a way to measure the internal development more directly?

10

Fair point. As mentioned in my other post, this is the first time I’ve really had any meaningful data available to me.

I definitely found myself in the mode of trying to correct the progress of the roast through power and fan, based on what I had understood was more of a need to manage RoR, Maillard time, development time, etc.

I’ll find a more natural balance with it in the next few roasts and see where that gets me.

Also, I completely destroyed 1.5 pounds of coffee in an earlier roast, so that’s why I switched to 300g but I didn’t lower the PH.

I’m thinking:

  1. Lower PH for 300g
  2. Less manipulation of power
  3. Keep fan consistent (I like that suggestion)
  4. More development time

I’ll see where that gets me.

Thanks!

11

Here is a recipe to try and change based on your own style.
Make sure you mark yellowing and first crack. I had the same problems when I first started Aillio Drum roaster from Behmor. It’s also hard to apply professionals recommendation to Aillio. Concepts from all have to be adapted to your location, beans, and style. The things that seemed to help with underdeveloped internal bean structure is increase time before yellowing, and time from yellowing to first crack, of coarse anything done to long has negative effects; therefore I posted a recipe I use often and modify based on bean and brewing style. This recipe is for 750g, so keep this mindful if using on anything below 500g or above 1000g.

RW Recipe for 750g Roast

1 Like
12

I’ve noticed a lot of these recipes don’t include the time, or am I missing something? Are the charts available elsewhere?

I noticed you increased the fan but didn’t decrease power through most of the roast. Do you find that better than reducing power?

13

@morgan
I agree with your assessment, but there are some good points that are useful for anybody. The baking part is true from Rao, the colour part is true from Münchow. Those two should be taken seriously. Whatever pertains to mass production of same roasts and same coffees should be discarded, as this is more of a commodity and commercial thing. Why would anyone want to have the same coffee over and over again, when you can have different results, all of them good, roasting just one coffee in different ways. It might be tough for someone with a 10kg roaster, but Bullet users should try many different things and maybe they like different roasts, so they can switch between them whenever they feel like it.

@cosgood.CqHb

What morgan said here. By the way, you can’t measure colour with a refractometer. When you measure the ground sample, it might tell you that it’s lighter than what you see. It is enough to measure the ground colour, although there’s this new trend of measuring the whole bean colour. Recently DiFluid launched an affordable colour meter that measures ground and whole bean. You can also make your own. There are detailed instructions by billc in this thread.
RT 4.3.2 addition to Color Meter dropdown - Feature Suggestions / Roast.Time Software - Roast World Community
Building your own saves you around 200-250€ vs DiFluid, but don’t hold me to that as I haven’t checked the parts prices for some time. Measuring colour is important because it is the main factor influencing the taste in cup. Good luck in your future endeavours.

14

I think the link has a roast list, time is effectively different most of the time, beans, density of beans, i live over 3000 feet, humidity and temperature is always changing, and and and, many factors can effect time. Take a look at percentages of each phase, but again a lot can affect times in each phase. Roast, observe, note: power, fan, drum…try keeping your variables limited, keep two steady for the most part change one and observe/note the changes. Don’t worry about the graph so much, watch your beans, smell the changes, watch as the bean changes. To answer your question, yes i have stopped changing the power as much, left the drum at 8 after 1 min, and use the fan to control temperature.

15

how does using the fan improve your roasts for you?

16

I have better control of roast temp, fooling with power has to much of a delayed effect with spikes in either direction, I can ease the temp with the fan, keep the drum at the same speed and make small fan adjustments. It works the best for me, seems to get a better full bean roast, compared to when I first started. By limiting the bullet roasting variables, P-F-D to small adjustments of one…helped me nail down a recipe with small adjustments as needed for bean and environmental variables.

1 Like
17

that sounds great. i did a few tests of airflow, but it was difficult to translate 1:1 from using power, or P settings. So i decided to figure out the more standard ways first.

Also, the fan settings seem to have less rotation varition than P9 has in power pulling variation.

Do you have to keep the room temperature more consistent for airflow to work well?

18

I roast in my garage, and open the door when roasting, todays roast it was 46F, so ambient temperature is a factor, but bean dynamics and roast style have more weight in my roast connectivity/graph.

1 Like
19

Yes they are under developed likely with a hay or green taste. I have some observations and suggestions that might help and sorry if i write some trivial remarks along:

  • There is a lot of noise in your RoRs. BTW I suggest roasting with both RoR, from the infrared and from the probe. You will notice difference specially just before first crack.

Solution: Roast with at least 400g. You will have much less noise and more consistent reading to correct you roast afterward. Roasting at D8 also gives more precise readings but D9 seems to be ideal speed for roasting with the bullet.

  • If i look at first roast, you do not have enough heat/energy transfered to the beans at the beginning. The level of the roast curve is important too not just the shape. You need more convex (than what you have) after the turning point.

Solution: First roast, do not charge after 20 min when it says charge. Pre-Heat 45-50 min at 5 or 10 degree over the targeted charge temperature. Adopt a consistent protocol between batches. Adjust the charging temperature according to the load (i.e. 400g vs 600g) but also the size and density of your beans. This is very important and often overlook. And eventually the moisture contained in the beans (for example 13%= charge higher than 11%). If you do not have any instruments to measure that, ask your provider. He should be able to give you density and moisture. You should also know how the bean was treated (washed vs natural pulped, fermented, etc). Take also note of the ambient room temperature and humidity to reproduce roast eventually. And the temperature of the beans before charging (not the same if 19c vs 23c for example). The bullet is sucking a lot of humidity. It can drop 10% after a roast.

I suspect here that your costa rica is from Tarrazu where they grow up to 1800 meters, very dense beans (likely around 0,73g/ml). You need more heat or at least not cutting the heat too soon.

-The second graph shows different heat absorption. I guess different size, density, moist and cellulose arrangements in the bean structure. Difficult to say without knowing the beans.

My suggestions:

  • Start with 400g batches (Try once with a 600g, you will see everything goes slower).
    -Start with an easier bean (less dense) to roast, like a Brazilian bean.
    -Mostly stick to roasting the same bean often at the beginning
    -Clean the infrared before each session (not each roast).

Because of beans differences and also differences between bullet models and even between same models, it is almost impossible to gives sound advice on a specific roast. I put a watt reader on my bullet R1V2 and from day to day at the same P, it draws different watt, so heat is affected.

Anyway if you still want to roast the Costa Rica one I would try that for a light roast with a sweet cup profile.

400g I supposed size 16, density around 0,73g/ml, moist around 12%.
Room: 21-22c , 30% hum
pre-heat: 250c 50 min
Charge: 245c (BT should be around 172-175c if not, rise the charge by 5. If higher than 175c lower the charge by 5).

Start with P8, F3, D9
-Hit F4 when BT around 147-150 (infrared should be around 173-175). Should be around yellowing.
-Hit P7 around infrared 180 (Bt around 160)
-Hit P6 just before first crack (190-195 infrared 175-182 bt probe).
-Hit P5 198-202 infrared(184-190 bt probe)
-Hit P4 205 infrared (194 bt probe)
Then reduces P gradually and until
Infrared 212c Bt probe 204c.

The spread between infrared reading and BT will likely be different on your machine. I would tend to say, do not drop if BT is under 200c if you do not like lighthly under developed notes. Anyway it has not much chance to work given all the unknown factors but basically, you need more heat at the beginning. If above does not work, try briefly going to P9 between 100c and 125c with infrared returning to P8 at 125c infrared.

ps your costa rica is not bake. The batch hasn’t stalled either. It is underdeveloped. You cannot follow any indications using time per say as without kwowing the beans characteristics it does not say much. However, your timeline does not shock me for a light roast.

2 Likes
20

When you say that “P” setting varies in wattage pull, do you notice much variation in the lower Power settings? I really only observe a big difference in P9. All the other settings are less sensitive to ambient temperature in my observations.

21

From P7 to P9

zzzzzzzszzzzzzzzccccccccccccccccccccffchccxsfcddfxdfcfgbcgbvhujghjbghbcgg

22

P7 seems mostly stable on my R1v2 and P8 variation is enough to trust it. P9 is a wildman, and horrible for consistent results.

23

Whoa that’s a lot of heat, OP. I think Morgan is right to suggest you try slowing down your roast. I panic if temperature deltas ever get above 14 celsius.

1 Like
24

do you go by deltas?

there are few different theories that seem to create sort of preferences for primry input. Power, Fan, and Delta are the main three I see. I tend to be in the “Power” camp.

25

I apologize in advance, but I must ask why would you say that when development ran for 2m11s with DT of 12.9°C and took 30% of total roast time? Those numbers indicate overdevelopment, not under. Also, the beans have reached

Let me be clear, I’m not trying to prove anything, I’m just interested in an elaborate explanation. Also because the beans wouldn’t be underdeveloped with 10% and 5-6°C DT. Actually, light roasts have much shorter development that rarely goes over 10%, but usually less if it’s a faster roast.

26

Hi all. Very helpful feedback, and I’ve been incorporating it in the last two roasts. I’m still experimenting, but I got closer with this last 350g. I’m going to start doing 400g as kafcafe mentioned.

The previous batch - where I was at 11 minutes at the end - were clearly baked. I’ve never really experienced truly baked roasts to that degree, so now understanding what it’s like is a helpful learning lesson.

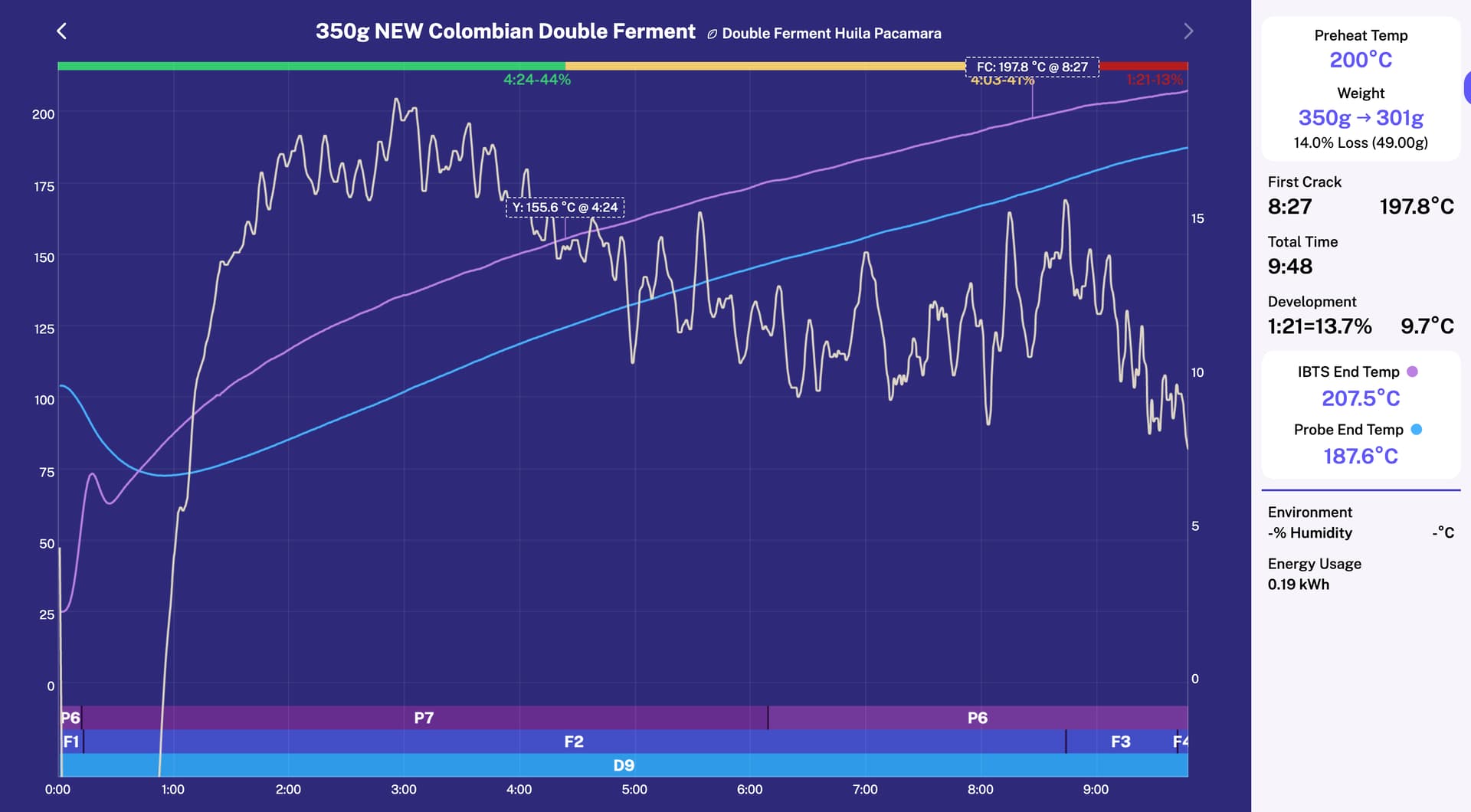

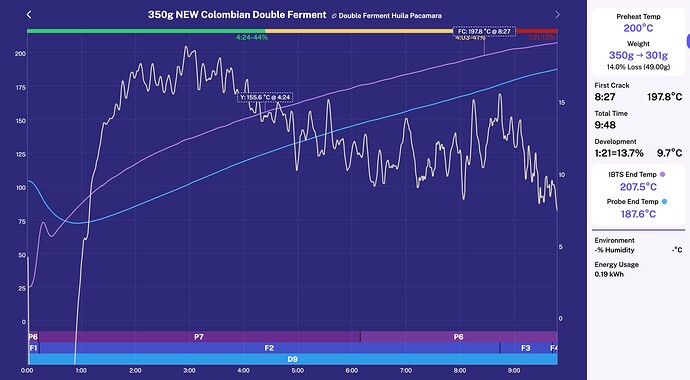

image1920×1060 104 KB

27

Mainly because the Development Time alone does not tell if the beans were well "prepared"for the DT phase. You could have twice the DT that you have here and still have underdeveloped notes in your roast or risk baking the beans). So what i mean by “prepared” is mainly what is occurring in the yellowing phase - browning phase we often called Maillard phase.

Basically the Yellowing-Maillard phase should be viewed as a conditioning stage. The DT phase often called the “flavor stage” is where the specific balance of sweetness, acidity, and bitterness is fine-tuned. But you have to have something to fine-tune first. I guess that would be the short answer. For a longer one if interested:

Sorry if sometimes i write obvious remarks, just trying to be as precise as possible.

So coffee cell walls are mainly composed of Cellulose, Hemicellulose and Pectic substances. After the “Drying phase” (even if it is not just drying per say like we label it) when the YP begins, Hemicelluloses and pectins begin to thermally soften and partially depolymerize reducing wall stiffness and increases permeability. A bit later in this Yellow/Maillard phase, chemicals components inside the cell like carbohydrates, proteins, lipids, acids, caffeine starts to change, denature, react. When proteins denaturation starts (cell structure is still intact) the internal matrix changes and amino groups are release that will later participate in the Maillard reactions. For example, Melanoidins are polymers formed when sugars and amino acids react (to heat) giving colors, aroma and flavor (so more at the end of the YP that some people also call the browning phase (Maillard)). When the previous phases are done correctly then the DT begins relevant (as well as the color to describe the roast degree, otherwise both can be misleading)

About the advice i gave regarding starting with a higher Drum (and BT) temperature charge here. First i have to say it is very difficult to give advice without knowing the beans characteristics and what you want to achieve. What i suggested is a guess for what would be a relatively large and dense bean. And it would be for a light roast where you can taste the fruit of the coffee, no biterness, bright acidity and sweet (as i drink mostly ristretto with no sugar, i need natural sweetness in my coffee). For me light roast means a BT temp drop of 203-205c (and DT would be around 210-212 on my bullet) for this type of beans. The important thing is not just the drop temperature of course but how you go there. I agree that for a darker roast, one would have to extend the roast to get a later FC and a higher drop temp. Finally specifically for the costa rica roast here, the Maillard is way too short for good sweetness and body (not enough Melanoidins created). Should aim 31-33%. But this also depends on how you mark the phases.

1 Like
